Weight Loss Table

Discussion in 'Race 400/430/455' started by dr, Jan 6, 2009.

  1. Tyler Northcutt

    Tyler Northcutt Just an old pile of parts

    Hmm seems pretty simple to make, I may have to try it. How many #'s did that save?

  2. td99

    td99 Well-Known Member

    i just finished up some front bumper brackets tonight. they weigh 1.001lbs lol.(thats without paint:laugh: ) sorry tyler i cannot find my bathroom scale to weigh it. my digital one only goes to 10lbs. so its to heavy to weigh. i think its posted earlier in this thread how much a stock one weighs though, they're pretty heavy.

    Cody

  3. 446670h

    446670h Active Member

    just curious, anyone have the individual convertible parts weights including frame weight difference?

    Last edited: Sep 26, 2010
  4. N360LL

    N360LL milehi71Stage1

    I think I might have the weight or the top frame in the next day or two. I'mm taking it out of my parts car. I can also weight the other parts that make up to top assembly if you'd like.

  5. TimR

    TimR Nutcase at large

    I'm curious as well. Please let us know, thanks.

    Tim

  6. Gary Bohannon

    Gary Bohannon Well-Known Member

    What does the stock front swaybar assembly weigh?

  7. TimR

    TimR Nutcase at large

    Swaybar itself is 14 lbs (not sure on end link and brackets), bare 1.25" swaybar is 21lbs.

    I'm still curious on weight of complete top assembly.

    Last edited: Aug 14, 2016
  8. ToddsGS

    ToddsGS Founders Club Member

    Cro Moly Crossmember:
    [​IMG]

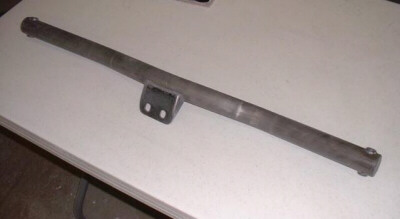

    Aluminum Bumper Brackets (Front & Back) Rear Shown Here:
    [​IMG]

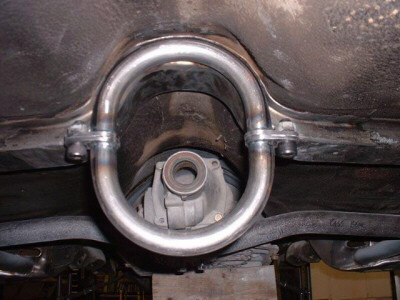

    Cro Moly Driveshaft Loop: (Use Cro Moly for the Roll Cage Also!)
    [​IMG]

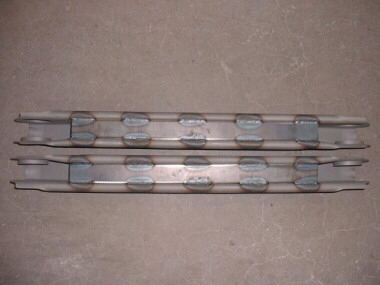

    Factory Control Arms (Beef em up, they're still lighter than the aftermarket Pcs!)
    [​IMG]

    There's some good stuff here! If you really pay attention to some of these ideas you can loose 500 to 800 pounds !! My stock appearing car is less than 3,200 right now and I have a couple more ideas that should get it under 3,100 and still be TOTALLY Stock Appearing. (It in no way will look like a race car)

    Great idea to come up with this post! :TU:

    .

  9. td99

    td99 Well-Known Member

    heres the pictures of the brackets. they weigh just over 1 pound each. the slots were they bolt to the frame of the car werent drilled in these pictures yet. id like a chromed fiberglass bumper to go along with them sometime haha :grin:

    Cody


    Attached Files:

  10. NormsGS

    NormsGS Well-Known Member

    Did you have any extras made that you would like to sell?

  11. ToddsGS

    ToddsGS Founders Club Member

    Thanks for checking but no extra parts were made. We simply fabricated these parts as the restoration took place.

    .

  12. Michael Evans

    Michael Evans a new project

    Took my Tomahawk block to the mechine shop to drop it off and pick up my iron block I am moving out of. And before I put it into the truck I had him weight it.

    The iron block with a halo-girdle and half fill is 200 pounds exactly.

    The Tomahawk is to weigh 110 pounds as described by TA Performance.

    So simple math says that is 90 pounds off the front end.

  13. pro tour gsx

    pro tour gsx pro tour gsx

    any light weight batteries that are around the stock size ?

  14. Buizila

    Buizila GO BROWNS !!!!!!

  15. TomGS72

    TomGS72 Silver Level contributor

    Does anyone make, and sell the bumper brackets like Todd has? Will they hold factory bumpers?

  16. Buizila

    Buizila GO BROWNS !!!!!!

    Todd had his fabricating friend make them for him at his speed shop. I begged him for a long time to make a set for Buizila. He finally did and vowed it would be the last set he'll ever make. Can't charge enough to justify the time invested in making them. If you know of a good fabricator,take a set of the originals brackets and he should be able to make them for you. But be ready to spend $500-$700 for all 8 pieces. They will have no problems holding the stock bumpers. Good luck!

  17. GSX455

    GSX455 Well-Known Member

    If the keeper of the table wants this info here is what I found

    70 through 72 steel doors, crash beams removed, glass and all regulators removed, outside door handle and latching mechanism removed, Factory hinges on the door when weighs. 49 lbs

    70 through 72 steel front fenders, no cutting all factory bracing, no rust or repair. 29 lbs

    John Stevens likes this.
  18. dr

    dr Well-Known Member

    Wayne I will add it to the table. What does the door weight stock? 49lbs with stuff removed

  19. Michael Evans

    Michael Evans a new project

    I went ahead and removed the inner air box ( holds the heater core also )and the weight was 10 pounds dry.

    I bet the water and hoses have to be worth four pounds.

  20. buicks

    buicks Well-Known Member

    Have you guys done aluminum pulleys and driveshaft/etc too?
    I saw online a place that seems to list fiberglass rear quarters, not sure how that works.
